Real fire simulator real fire burning basin real fire burning plate

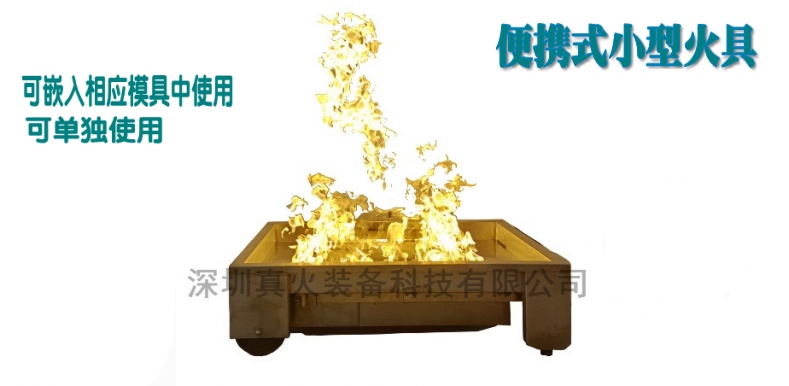

The small movable real fire simulator, real fire combustion basin and real fire combustion plate independently developed and designed
by Shenzhen Zhenhuo Equipment Technology Co., Ltd. are made of special materials, delicate and convenient in appearance, and can withstand
multiple ignition and combustion training. Mobile small real fire combustion equipment uses water bath combustion technology to spread fuel
more evenly from the combustion disk, forming the same natural combustion as the real fire, and the flame effect is more realistic.
At the same time, the water bath can protect the combustion device and prolong the service life. A variety of different types of combustion
models can be installed on the top of the real fire combustion plate to simulate different kinds of ignition points. The structural model is
made of refractory steel, which can withstand the spraying of fire extinguishing agent in the design life.
It is mainly used for emergency rescue personnel to carry out fire fighting and rescue technology, tactics and combat methods training and
other combat operations to create actual combat background and conditions
System component
It mainly consists of 4 modules, real fire combustion panel, control console, remote control device, fire point model (customizable).
1. Real fire combustion system
The real fire combustion device has the corresponding characteristic combustion database, which can simulate the corresponding type of flame and the different characteristics of different types of flame in different stages of development.
2. Gas supply system
It is composed of liquefied gas bottle, gas vaporizing device, pressure regulating valve, flame arrester, solenoid valve group and gas supply pipeline. Provide stable pressure and constant current combustible gas for combustion device.
3. Ignition combustion system
It is composed of high energy ignition device, elephant trunk combustion device and ignition control device. It is used to maintain the normal operation of real fire combustion system during fire drill.
4. Remote control system
The flame state of the fire model is controlled remotely. The flame state is divided into three levels: initial fire, everyone, high fire.
5. Security guarantee system
There is an emergency stop device in the control console, press the emergency stop button in the emergency state, the flame will be extinguished and the fuel transfer will be closed. Protect the safety of trainees
