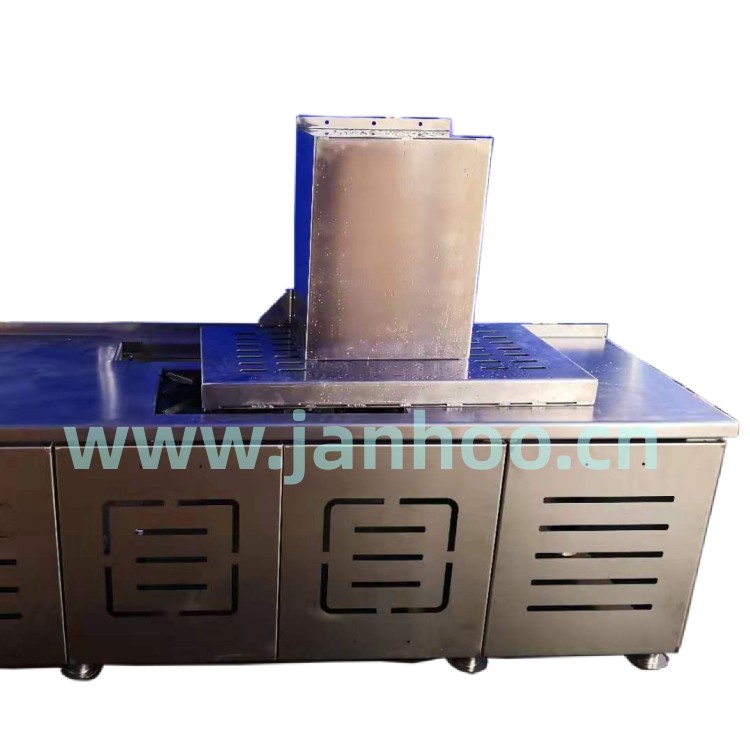

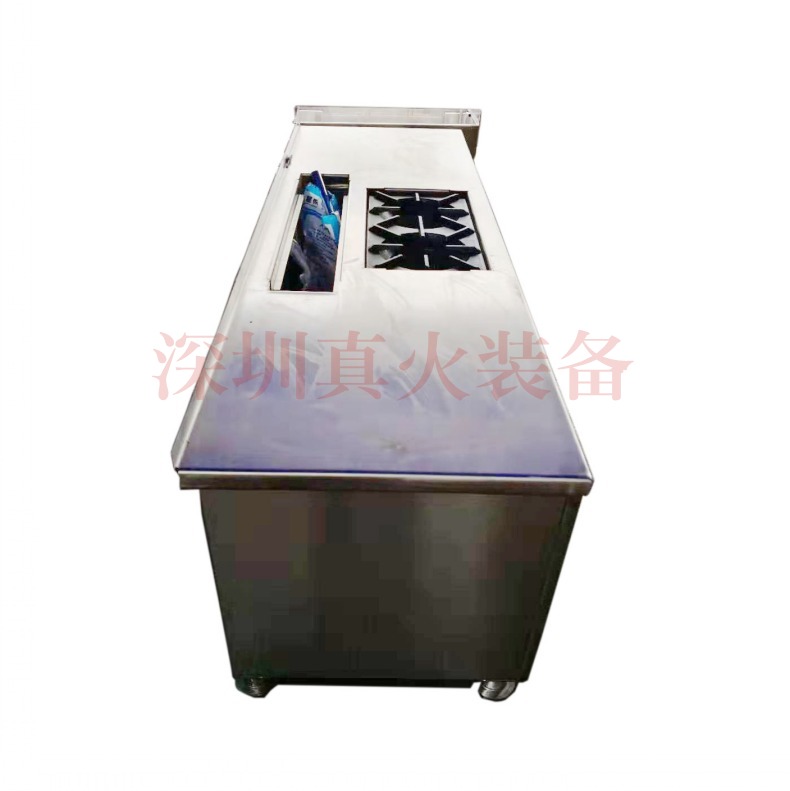

Kitchen Fire Simulators,Kitchen fire training systems

Kitchen Fire Simulators,Kitchen fire training systems

Mold form: customizable

Flame height: can be set and automatically adjusted, up to 2.4m; Deflagration can reach 3m

Flame range: can be set and automatically adjusted, the maximum coverage of all areas of the model;

Growth rate: can be set and automatic adjustment;

Power supply, combustion control cabinet: 220VAC, 50Hz, 20A/ Smoke generator: 220VAC, 50Hz, 10A/

Fan control cabinet: 380VAC, 50Hz, 15A;

Fuel supply: LPG or natural gas, gas phase, 2.0 SCMM@0.3 bar;

Cooling water supply: none.

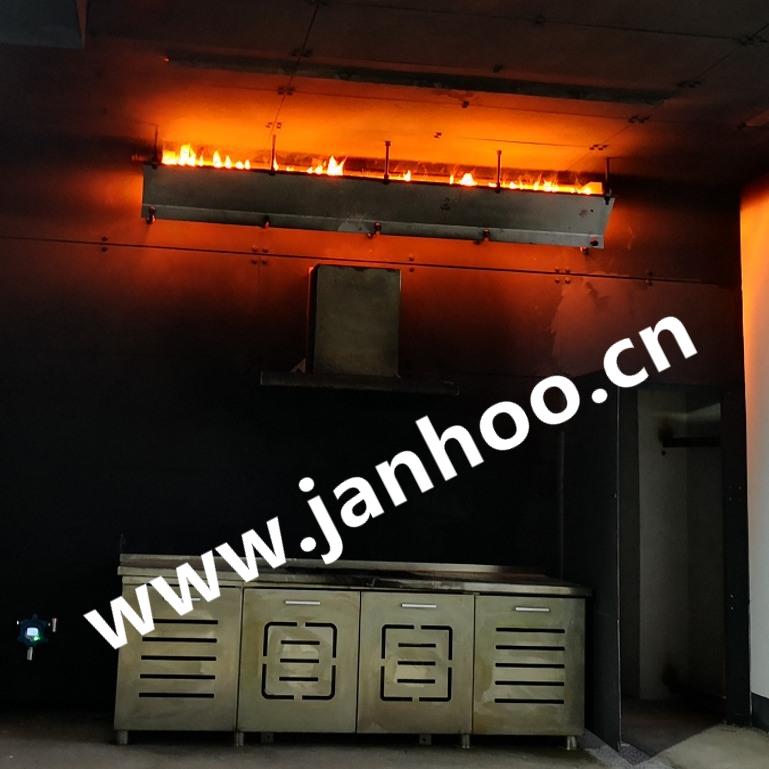

With the characteristic database of kitchen fire combustion, the real simulation of smouldering kitchen stove fire, stretching and flammable liquid burning on the ceiling, and can simulate the effect of flue gas flow;

With dynamic fire feedback technology, automatic reduction, extinguishment, reignition, etc.

With air premixing technology, improve combustion rate, avoid inadequate combustion;

Combustible gas monitoring subsystem, dual channel, uninterrupted monitoring environment combustible gas concentration;

Temperature detection subsystem, automatic detection of ambient temperature;

Pilot fire monitoring subsystem, will not be extinguished during training, to ensure the normal ignition of the main flame;

Variable speed smoke exhaust system, automatic adjustment of exhaust air and smoke volume, to ensure environmental safety and continuous training;

Automatic control of smoke generation system, smoke for non-toxic no residual aerosol sol;

Emergency stop device, shut down the training system in case of emergency, and start the exhaust fan
